PRO-KLIMA filter technology

Clean air all the time

Best filter performance with minimal pressure drop and maximum service life

State-of-the-art filter technology in PRO-KLIMA air handling units ensures perfect hygiene, excellent indoor air quality, component protection, environmental protection and low operating costs. The standardised solutions, some of which were developed in collaboration with us, are selected and calculated for all requirements and output ranges on a project-specific basis.



Clean and healthy air; low energy consumption. The PRO-KLIMA product range covers all filter technologies and, naturally, meets ISO 16890 filter standards (applicable as of 01/01/2017).



In addition to filter quality, undesirable bypass leaks and filter maintenance have a significant effect on the hygiene of indoor air. PRO-KLIMA AHU appliances are designed with the lowest possible filter bypass leakage and use a filter quick-clamping system to fulfil the highest hygiene requirements. The BMK Touch programming unit also provides smart filter monitoring with a filter status indicator.

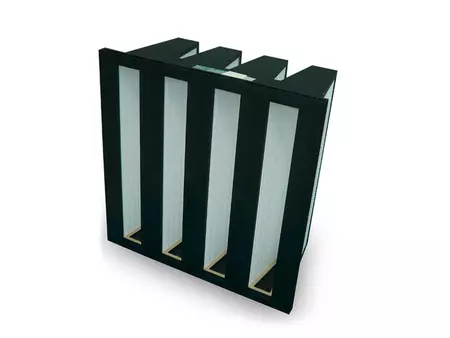

  • HEPA filters

    Consistently clean air: HEPA terminal filtration for air handling and ventilation units

    HEPA filters with high-grade fibreglass media

    • Suitable for handling high air flow rates
    • High-quality fibreglass filter media
    • Highly efficient filtration
    • Can be fully incinerated
    • Special mounting frame prevents any leaks
    • H13 and H14 filter classes available
    wolf

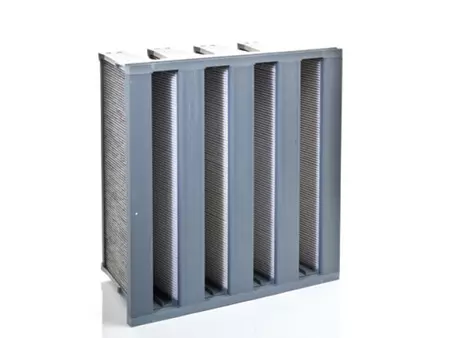

  • Hybrid filters

    The Carbon combination filter is an effective solution for eliminating particles and gaseous components, particularly odours, in just one single filter stage

    The Carbon combination filter removes particles using an efficient microfibre synthetic filter fleece and meets filter class ePM1>50% or ePM1>65% requirements in line with EN ISO 16890

    • Suitable for handling high air flow rates
    • Particle filtration and odour elimination in a single filter stage
    • Large filter surface area, therefore longer service life
    • No carbon dust formation due to bonded activated charcoal material
    • Environmentally responsible disposal thanks to hollow plastic profiles that can be fully incinerated
    • Light weight for easier handling
    • Compact design with shallow depth
    • Self-supporting, rigid design for reliable operation
    wolf

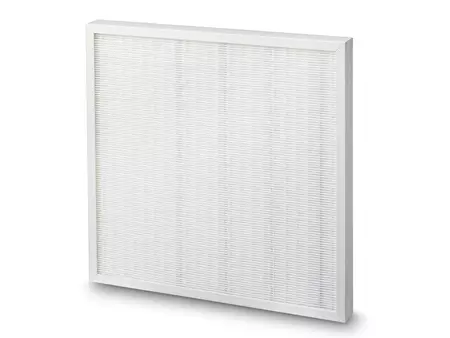

  • Panel filters

    Being short on space is no excuse to cut corners: clean air and long service life despite limited space

    Highly efficient, space-saving, panel-shaped filter

    • Long service life achievable.
    • Light yet robust design
    • Minimal installation depth
    • Can be fully incinerated
    • Fibreglass filter media, plastic frame
    • Available in filter classes from ePM10 > 50% to ePM1 > 80% in line with EN ISO 16890
    wolf
  • Bag filters

    The classic filter for Pro-Klima air handling and ventilation units guarantees a large filter surface area and optimum energy and hygiene properties

    Our energy-optimised bag filters fulfil all specifications of VDI 6022

    • Generously sized filter surface area with high dust-holding capacity
    • Low pressure losses
    • Available in filter classes ePM10>50%, ePM1>50%, ePM1>80% as per EN ISO 16890
    • Energy-optimised bag filters with outstanding hygienic properties to ensure compliance with VDI 6022
    • Glass fibre filter media, sendzimir galvanised sheet steel frame
    • Moisture-proof up to 100% relative humidity
    • Best air distribution thanks to newly developed bag design
    • Conical filter bags
    wolf

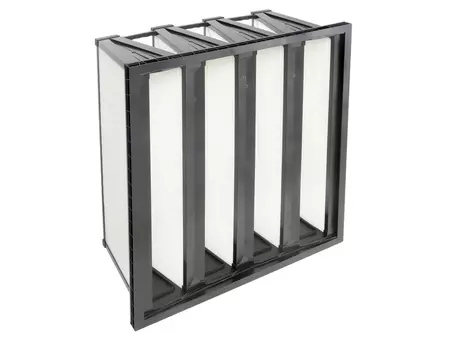

  • V-shaped compact filters

    Air treatment in an aerodynamic, compact design

    Compact filter with impressively low energy costs and a long service life

    • Light, robust construction
    • Very low energy costs
    • Aerodynamic design
    • Can be fully incinerated
    • Very long service life
    • Certified performance
    • Fibreglass filter media, polypropylene and ABS frame
    • Available in filter classes from ePM10>50% to ePM1>80% in line with EN ISO 16890
    wolf

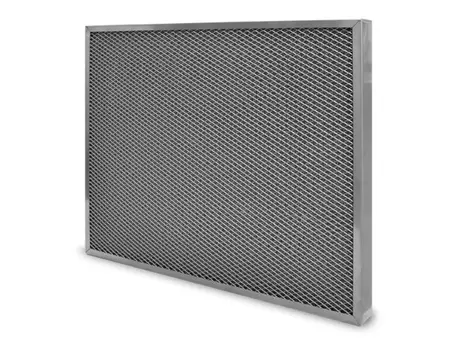

  • Expanded metal / mesh filters

    The special filter for grease and oil filtration - grease traps

    Ideal for the gastronomy and industrial sectors

    • Suitable for separating grease or oil mist
    • Stainless steel medium for easy cleaning
    • Stainless steel frame
    • Up to 95% separation rate for oil mist and grease aerosols
    • Also effective against dust, sand, paints etc.
    • Knitted fabric with outer frame covered by expanded metal or corrugated mesh on both sides
    wolf

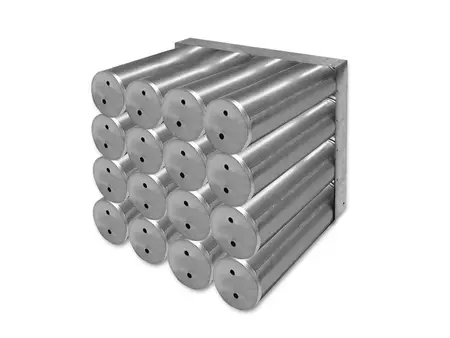

  • Activated charcoal filters

    For filtration of odours from organic and inorganic gases

    Filled with high-quality activated charcoal, the cartridges offer great flexibility at all times

    • Elimination of odours and gaseous substances – reduces the causes of sick building syndrome
    • Physical adsorption using activated charcoal made from coconut shells
    • For use in industrial applications with high concentrations of gaseous pollutants, such as industrial kitchens and airports
    wolf
wolf

Highest hygiene standard

Air is treated like food in our air handling units (AHUs). With well thought-out technical solutions and an optimal unit design, our claim goes beyond the fulfillment of hygienic standards.

Coupled with proper operation and regular maintenance according to VDI 6022, PRO-KLIMA ensures hygienic air exchange in buildings.

See more
