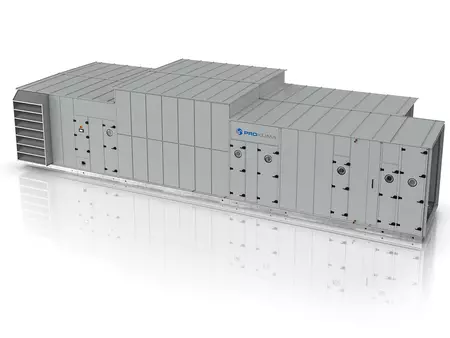

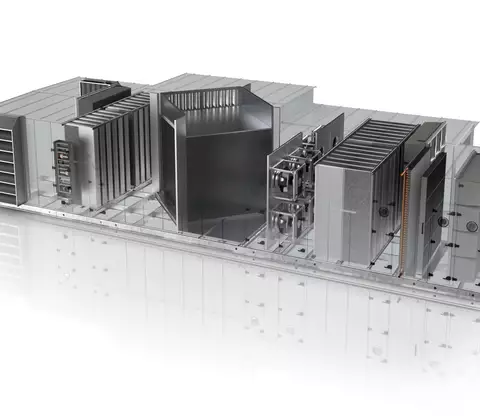

PROKLIMA KG Flex

• Rotary heat exchangers: Enable partial recovery of room humidity from the exhaust air into the supply air stream.
• Two plate heat exchanger variants: counterflow heat exchanger: Compact solution with four‑sided heat transfer, Crossflow heat exchanger: Designed for high air volumes, low pressure losses, and fully separated
• Hydronic run‑around coil system (HRC): Ensures complete separation of supply and exhaust airflows—especially suitable for sensitive applications

• Use of state‑of‑the‑art IE5 EC fans with stepless speed control from leading European manufacturers
• Fanwall principle: Saves space while additionally increasing operational reliability through redundancy
• Flexible use of external heat pumps for decentralized heating and cooling supply
• Integrated heating and cooling coils – optionally separate or combined – for the use of external energy sources

• Design in accordance with DIN 1946‑4 and VDI 6022, suitable for cleanrooms and operating theatres (Class 1A)
• Support for all filter classes up to ISO ePM1 85% (F9)
• Optimal serviceability thanks to Flip&Clean silencers, quick‑release fastening systems, and smooth stainless‑steel surfaces
• Super Seal labyrinth sealing providing 98% airtightness
• Air humidification with the Hygroflow system in accordance with VDI 6022

• Plug & Play solution with pre‑installed sensors and complete wiring
• Individual parameter configuration for maximum energy efficiency
• Connection to building management systems (BMS) via Modbus or BACnet
• Modular and expandable control system – also upgradeable at a later stage
• Available as an integrated or external control cabinet solution

• Developed to meet the highest requirements for structural stability, hygiene, and thermal performance
• 50‑mm steel profile frame, thermally and acoustically decoupled
• Meets L1; D1; T2; TB2, non‑combustible according to DIN 4102: A1 (certified by TÜV Süd in accordance with DIN EN 1886)
• Powder‑coated inside and outside in customer‑specified RAL colors – optional C5‑M finish for seawater‑resistant applications
